XCMG GKS30TL Skylift
Skylift
XCMG
GKS30TL Skylift

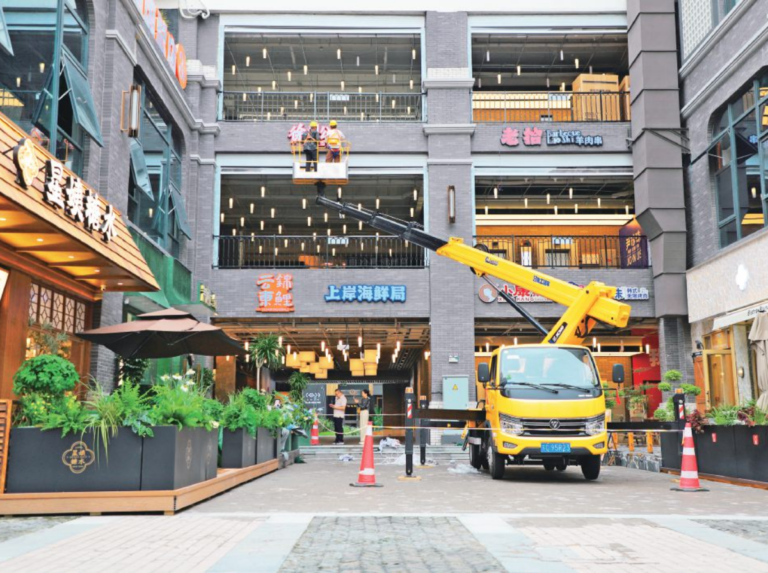

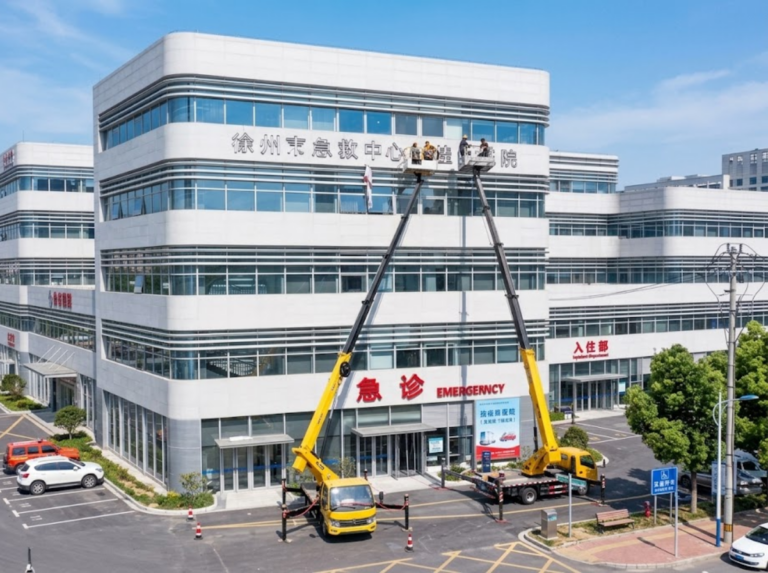

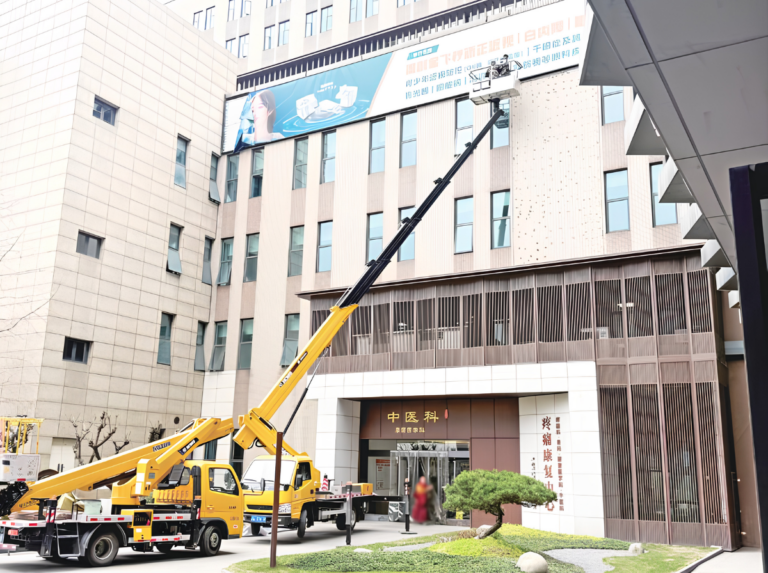

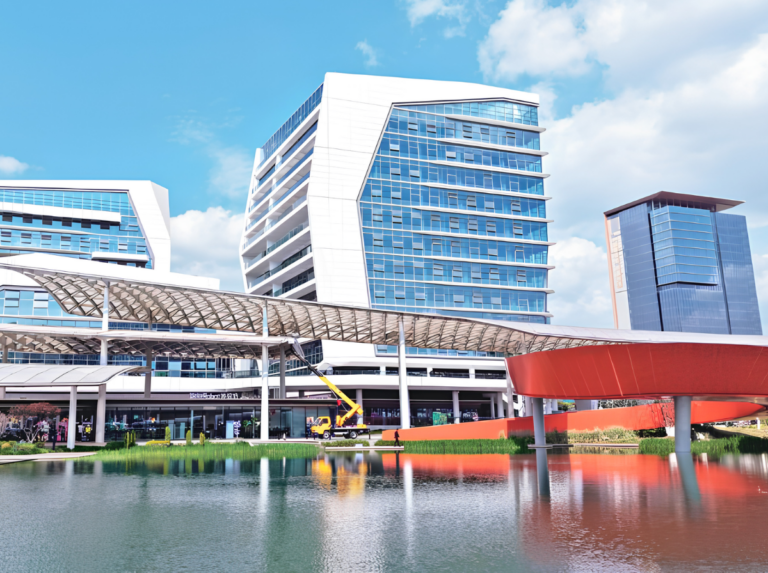

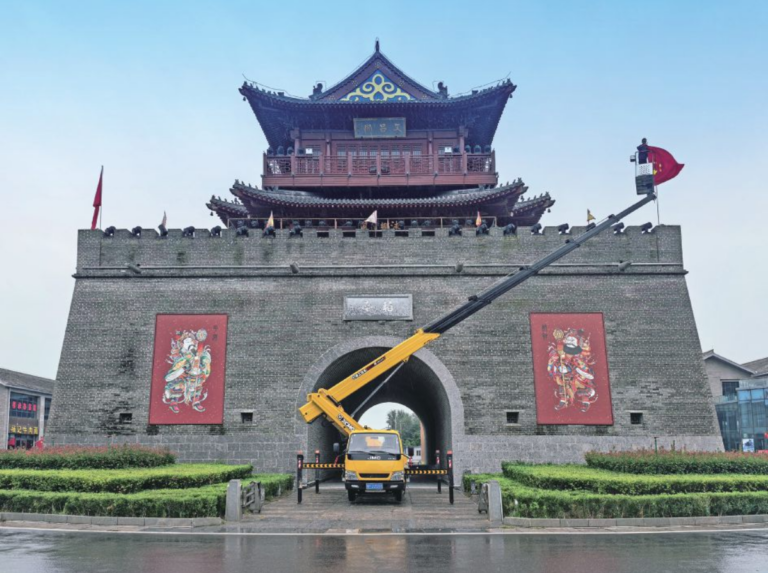

The XCMG GKS30TL is a truck-mounted aerial working platform (skylift) designed for elevated work in urban and commercial environments. With a maximum working height of 30 m, a maximum working radius of 18 m, and a platform rated load of 200 kg, it delivers reliable reach from a compact vehicle footprint. Its six-section boom with five-stage synchronous telescoping, steel platform that folds to ground level, ±360° continuous turntable slewing and front/rear dual-stage outriggers make it suitable for commercial building maintenance, shopping malls and retail complexes, urban street works and heritage building facade maintenance, particularly in narrow or space-restricted sites.
Model
GKS30TL Skylift
Category
Aerial Working Platform
Max Lifting Capacity
30 m
About Our machinery
PRODUCT DESCRIPTION
KEY PRODUCT FEATURES
• 30 m Working Height & 18 m Working Radius – Provides extended vertical and horizontal reach for multi-storey buildings and elevated work areas.
• Six-Section Telescopic Boom – Features five-stage synchronous telescoping for smooth operation and reduced repositioning.
• Ground-Level Platform Access – Lowers the platform to ground level for easier personnel access and loading of tools and materials.
• Compact & Manoeuvrable Design – Short wheelbase and compact dimensions enable operation in narrow streets and confined spaces.
• 360° Slewing & ±90° Platform Rotation – Enables flexible, precise positioning around the vehicle.
• Independent Outrigger Control – Adjustable outriggers with automatic outreach limitation based on extension, boom position and load.
• Multi-Position Controls & Wireless Remote – Supports operation from the platform, turntable or ground-level controls, with a standard wireless remote.
• Built-In 220V Power Supply – Waterproof platform sockets provide convenient power for electric tools at height.
• Reinforced Polygonal Boom – High-strength steel construction, robotic welding and electrophoretic coating enhance rigidity and durability.
• Comprehensive Safety Systems – Includes automatic jib range limitation, emergency pump, chassis interlock, outrigger soft-ground protection and emergency stop.
Technical Data
Specifications
Max. Working Height
30 m
Max. Working Radius
15.6 m (200 kg) / 18 m (100 kg)
Max. Horizontal Outreach
15.6 m at 200 kg / 18 m at 100 kg
Platform Capacity
200 kg
TECHNICAL SPECIFICATIONS FOR GKS30TL Skylift
| Specification | Value |
|---|---|
| Brand | XCMG |
| Model | GKS30TL |
| Product category | Aerial working platform |
| Chassis model | 福田 Foton BJ1088VEJEA-RF |
| Engine | Cummins ISF3.8s4R154, rated power 115 kW, Euro IV emission standard |
| Drive configuration | Right-hand drive |
| Max. working height | 30 m (bucket floor 28 m) |
| Max. platform height | 28 m |
| Max. working radius | 15.6 m (200 kg) / 18 m (100 kg) |
| Working radius at max. working height | 4.5 m |
| Working height at max. working radius | 5.5 m |
| Platform rated load | 200 kg |
| Boom type | 6-section boom with 5-section synchronous extension |
| Boom structure | Polygonal boom formed from high-strength steel plates, robotic welding and electrophoretic coating |
| Platform type | Steel platform, side entrance, foldable to ground |
| Platform dimensions | 1,400 × 680 × 900 mm |
| Platform rotation | ±90° |
| Turntable rotation | ±360° continuous rotation |
| Rotation device | Integrated worm and worm gear slewing bearing, 630 mm raceway diameter |
| Outrigger | Front V-type & rear H-type, dual-stage, individually adjustable |
| Outrigger span (transverse) | 4,975 mm (front) / 4,795 mm (rear) |
| Outrigger span (longitudinal) | 5,495 mm (left) / 5,320 mm (right) |
| Overall dimensions | 7,170 × 2,200 × 3,660 mm |
| Wheelbase | 3,800 mm |
| Tare mass (with chassis) | 7,290 kg |
| Crew (including driver) | 3 persons |
| Max. travel speed | 90 km/h |
| Approach angle | 19° |
| Departure angle | 13° |
| Operation system | Three-position operation (platform / turntable / lower); standard wireless remote controller, screen-equipped remote controller optional |
| Platform control | 2-axis anti-misoperation joystick, high-definition display, emergency stop switch |
| Turret control | Manual turret control with integrated air control panel |
| Leveling system | Hydrostatic leveling system |
| Power outlet | Standard 220V power outlet on platform (waterproof sockets) |
| Torque monitoring | Standard oil pressure sensors collecting real-time load and boom posture data |
| Power takeoff | Electric PTO |
| Operator position | Left turret seat, configured for right-hand-drive operation |
SAFETY DEVICES
• Automatic jib range limitation
• Electric emergency pump
• Upper/lower chassis interlock
• Outrigger soft-ground (soft-leg) protection
• Emergency stop switch
• Oil pressure sensors with dynamic torque monitoring and intelligent safe-outreach determination
• Hydrostatic leveling system
• Integrated worm and worm gear slewing bearing (630 mm raceway) for smoother slewing and emergency stop performance
