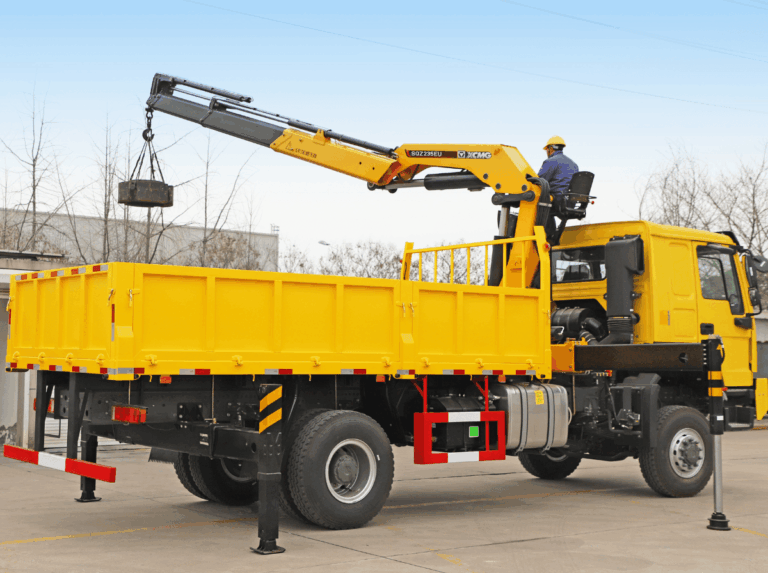

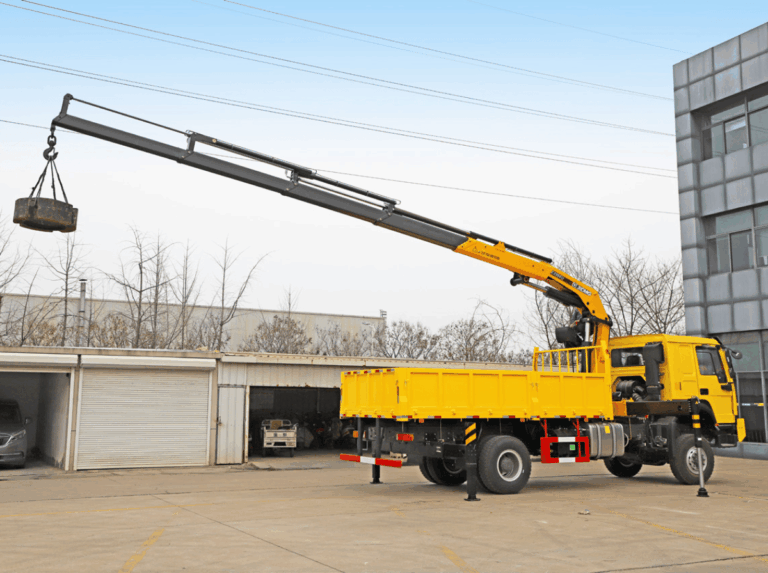

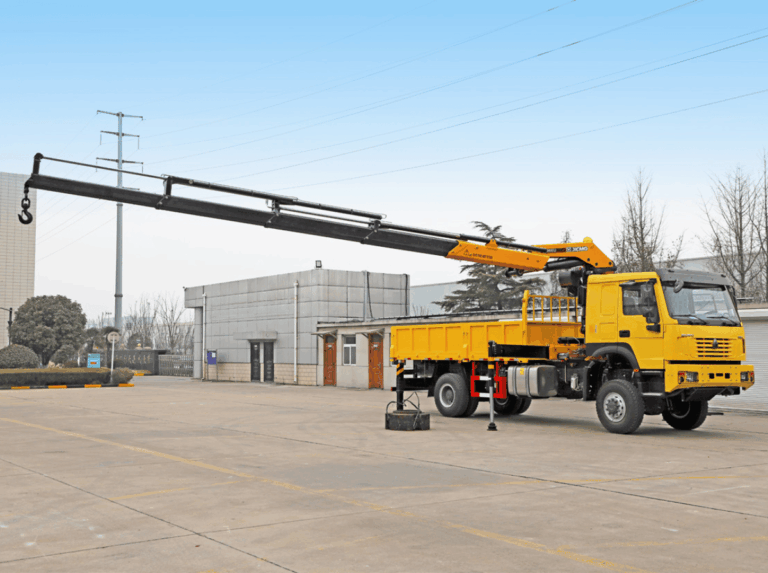

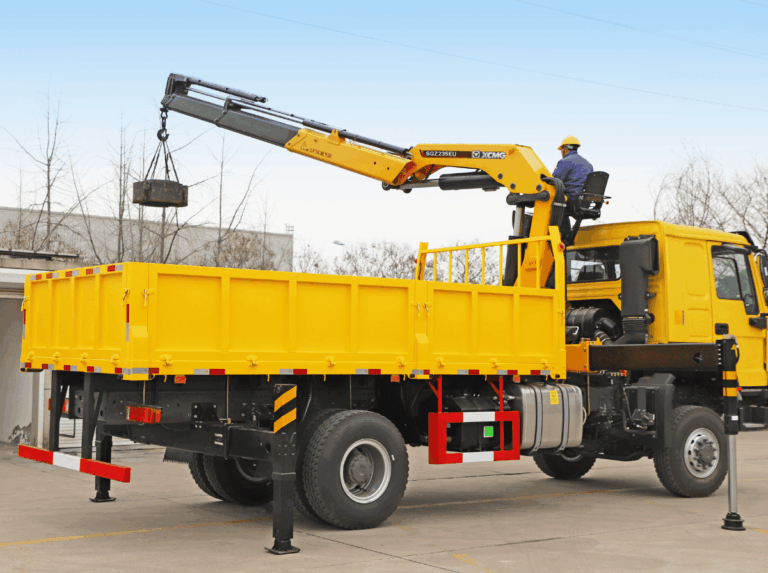

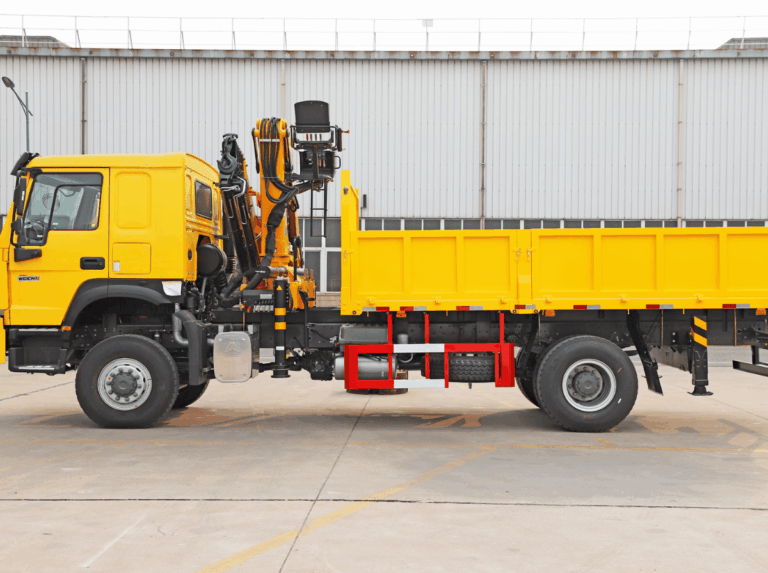

XCMG SQZ235EU
Truck-Mounted Crane
XCMG
SQZ235EU
Self-Weight
3,015 KG
Model
SQZ235EU
Crane Series
Medium-Duty Crane
Max Lifting Capacity
8,200 kg
About Our machinery
PRODUCT DESCRIPTION
-
Lightweight & Durable Structure: Built with high-strength steel plates that reduce structural weight by 10% without compromising maximum durability.
-

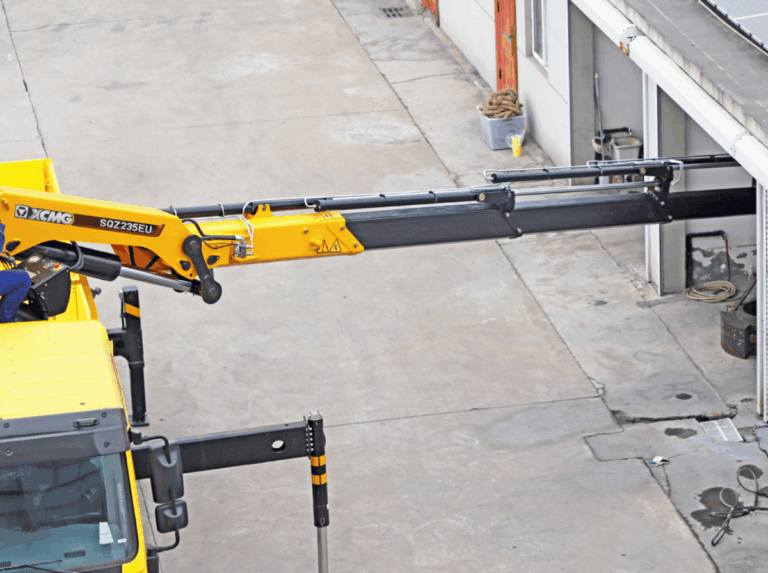

High Extension Efficiency: Features sequential extension cylinders with return oil utilization, boosting boom extension speed by 30%.
-
Flexible Mobility & Reach: Designed with a 15° reverse angle on the second boom and negative angle capability for seamless operation in tight spaces.
-

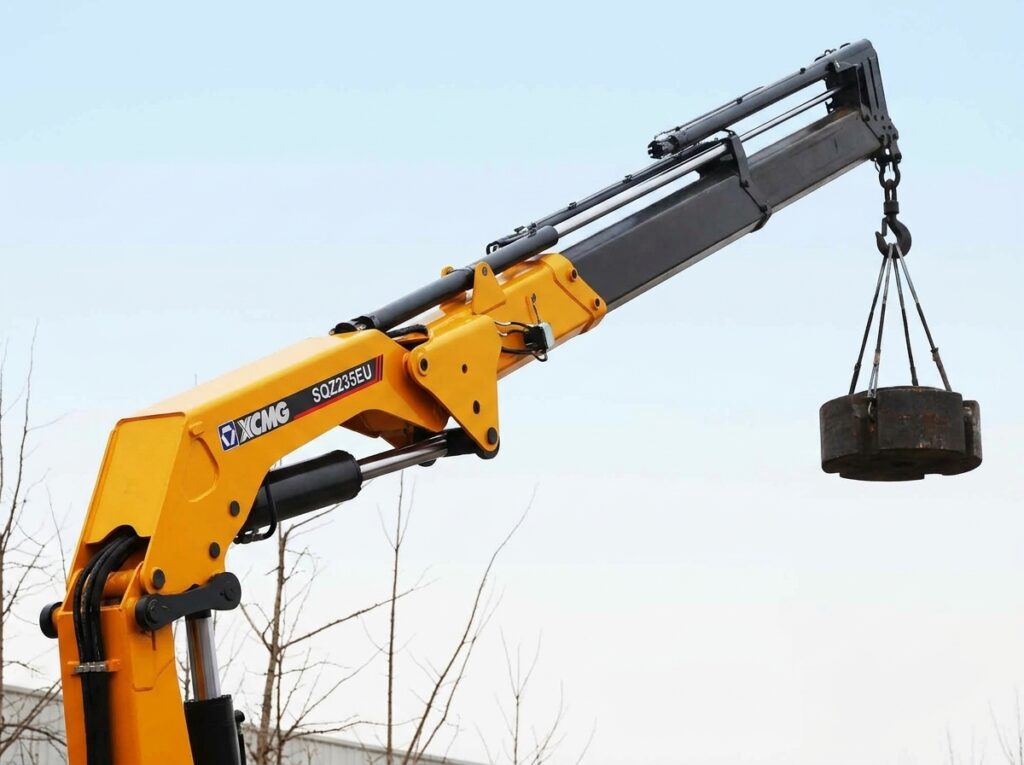

Hexagonal Boom Design: One-piece welded hexagonal structure provides high bending resistance and effectively minimizes lateral swaying.
-

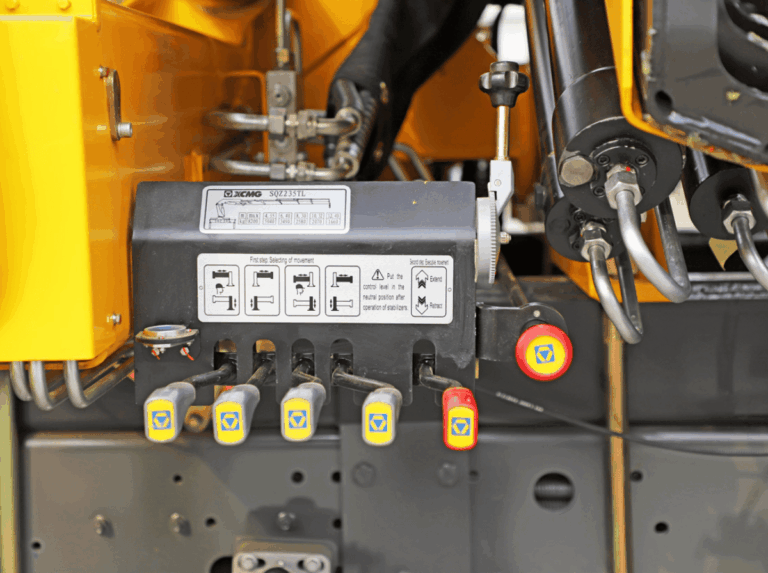

Smooth & Precise Hydraulics: Fitted with upper-vehicle proportional control valves for fine movement accuracy and comfortable compound actions.
-

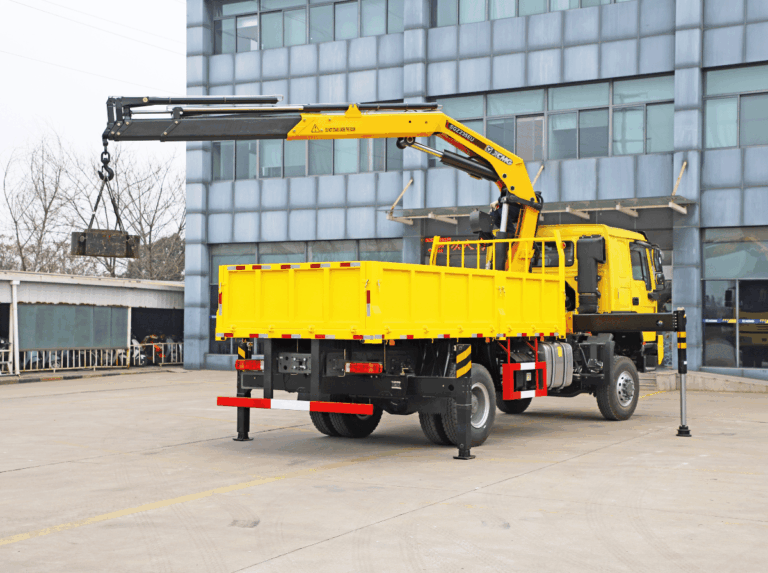

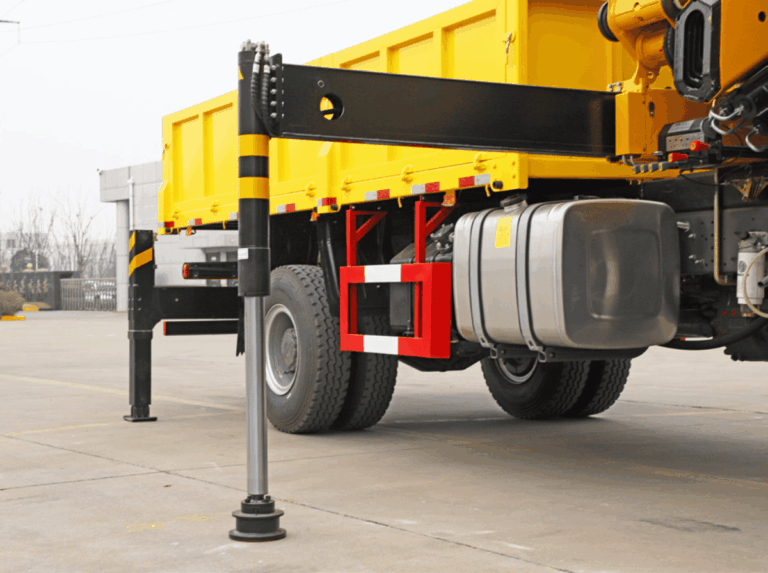

Enhanced Stability & Safety: Equipped with dual-cavity telescopic outriggers (up to 7.4 m span) and optional real-time torque moment limiter.
Technical Data
Specifications
Max. Lifting Capacity
8,200 kg
Max. Working Radius
12.3 M
Max. Lifting Height
14.3 M
Product Self-Weight
3,015 KG
-
Lightweight & High Strength: Engineered with high-strength steel plates that reduce structural weight by 10% for improved payload capacity.
-
High Lifting Performance: Delivers up to 8,200 kg maximum capacity, 231 kNm lifting moment, and a 16.8 m maximum working range.
-
Hexagonal Boom Structure: One-piece welded hexagonal design provides high bending resistance and effectively minimizes lateral swaying.
-
Enhanced Extension Efficiency: Features sequential extension cylinders with return oil utilization to boost extension speed by 30%.
-
Flexible Operation & Reach: Designed with a 15° reverse angle on the second boom, negative angle capability, and a 400° rotation angle.
-
Advanced Safety & Stability: Equipped with dual-cavity telescopic outriggers (up to 7.4 m span) and optional real-time torque moment limiter.
