XCMG SQZ485.6
Truck-Mounted Crane
XCMG
SQZ485.6
The XCMG SQZ485.6 is a heavy-duty knuckle boom crane designed for lifting and material handling applications. It features a six-section hexagonal sequential telescopic boom, 360° continuous slewing, remote-control operation, and a double-chamber two-stage telescopic outrigger system. The crane provides a maximum lifting capacity of 16,000 kg, maximum lifting height of 17.9 m, and maximum hydraulic outreach of 15.5 m. XCMG SQZ485.6 Knuckle boom crane
Self-Weight
6,200 kg
Model
SQZ485.6
Crane Series
Knuckle Boom Crane Series
Max Lifting Capacity
16,000 kg
About Our machinery
PRODUCT DESCRIPTION
KEY PRODUCT FEATURES
- Heavy-Duty Lifting Performance
Designed for demanding lifting and material handling operations. - Six-Section Telescopic Boom
Provides flexible reach and efficient load positioning. - Hexagonal Boom Structure
Provides strong structural performance and improved resistance to bending and torsion. - 360° Continuous Slewing
Provides flexible positioning around the truck. - Stable Outrigger System
Double-chamber, two-stage telescopic outriggers provide support during lifting operations. - Smooth Hydraulic Control
Proportional hydraulic control supports precise and smooth crane movements. - Remote Control Operation
Allows convenient operation from the superstructure, with manual valve control available from the chassis side. - Integrated Safety Features
Includes load moment limiting, anti-two-block warning, and hydraulic safety valves. XCMG SQZ485.6 Knuckle boom crane
Technical Data
Specifications
Max. Lifting Capacity
16,000 kg
Max. Working Radius
15.5 m
Max. Lifting Height
17.9 m
Product Self-Weight
6,200 kg

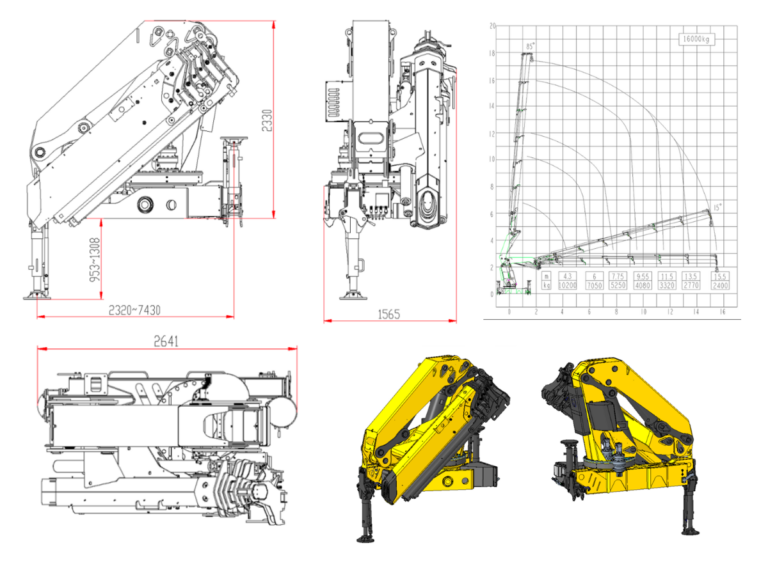

TECHNICAL SPECIFICATIONS FOR SQZ485.6
| Specification | Value |
|---|---|
| Brand | XCMG |
| Crane model | SQZ485.6 |
| Max. lifting capacity | 16,000 kg |
| Max. lifting moment | 43.8 mt |
| Max. lifting height | 17.9 m |
| Max. hydraulic outreach | 15.5 m |
| Boom type | Hexagonal sequential telescopic boom, 6 sections |
| Boom length | 2.32 – 7.43 m |
| Slewing angle | 360° continuous |
| Luffing angle | 0 – 85° |
| Outriggers type | Double-chamber, two-stage telescopic outrigger |
| Outriggers span | 2,320 – 7,430 mm |
| Operation | Remote control on superstructure, dual-manual valve control on chassis side |
| Max. hydraulic system pressure | 33 MPa |
| Recommended power | 48 kW |
| Recommended pump capacity | 80 L/min |
| Crane weight | 6,200 kg |
CONFIGURATION
- Self-rotating hook with 360° continuous rotation.
- Hydraulic balance valve, hydraulic overflow valve, and hydraulic double-way valve.
- Load moment limiter for continuous lifting-moment monitoring.
- Auxiliary winch lifting hook for precise and rapid material lifting.
- Anti-two-block warning device.
- Dual slewing reducers with double-row ball slewing bearing.
- Dual-chamber horizontal outriggers and automatic flip vertical outriggers.
- Dual four-bar linkage mechanism. XCMG SQZ485.6 Knuckle boom crane
