XCMG SQZ565.8
Truck-Mounted Crane
XCMG
SQZ565.8

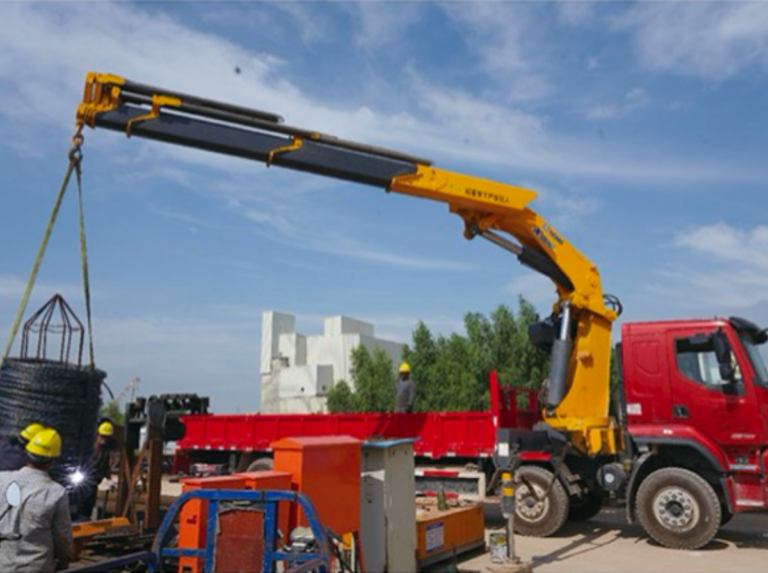

The XCMG SQZ565.8 is a heavy-duty knuckle boom crane designed for demanding lifting and material handling applications. It combines an eight-section hexagonal boom, 360° continuous slewing, remote-control operation, and a double-chamber two-stage telescopic outrigger system. The crane provides a maximum lifting capacity of 18,000 kg, maximum lifting height of 22.1 m, and maximum hydraulic outreach of 20 m. XCMG SQZ565.8 Knuckle boom crane
Self-Weight
7,250 kg
Model
SQZ565.8
Crane Series
Knuckle Boom Crane Series
Max Lifting Capacity
18,000 kg
About Our machinery
PRODUCT DESCRIPTION
KEY PRODUCT FEATURES
- Heavy-Duty Lifting Performance
Designed for demanding lifting and material handling operations. - Eight-Section Hexagonal Boom
Provides strong structural stability and resistance to bending and torsion. - Long-Reach Operation
The telescopic boom provides extended reach for flexible load positioning. - 360° Continuous Slewing
Allows flexible load positioning around the truck. - Stable Outrigger System
Double-chamber, two-stage telescopic outriggers provide strong support during lifting operations. - Smooth & Precise Control
Proportional hydraulic control supports smooth crane movements and combined operations. - Remote Control Operation
Allows operation from the superstructure, with additional manual valve control from the chassis side. - Enhanced Safety System
Includes a load moment limiter, anti-two-block warning device, hydraulic safety valves, and emergency controls. XCMG SQZ565.8 Knuckle boom crane
Technical Data
Specifications
Max. Lifting Capacity
18,000 kg
Max. Working Radius
20 m
Max. Lifting Height
22.1 m
Product Self-Weight
7,250 kg

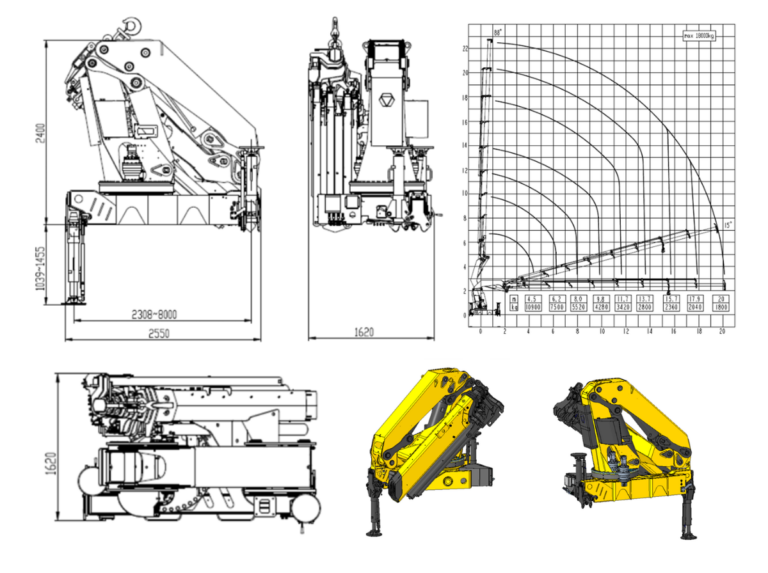

TECHNICAL SPECIFICATIONS FOR SQZ565.8
| Specification | Value |
|---|---|
| Brand | XCMG |
| Crane model | SQZ565.8 |
| Max. lifting capacity | 18,000 kg |
| Max. lifting moment | 49.4 mt |
| Max. lifting height | 22.1 m |
| Max. hydraulic outreach | 20 m |
| Boom type | Hexagon, 8 sections |
| Boom length | 4.5 – 20.0 m |
| Slewing angle | 360° continuous |
| Luffing angle | 0 – 88° |
| Outriggers type | Double-chamber, two-stage telescopic outrigger |
| Outriggers span | 2,300 – 8,000 mm |
| Operation | Remote control on superstructure, dual-manual valve control on chassis side |
| Max. hydraulic system pressure | 33 MPa |
| Recommended power | 48 kW |
| Recommended pump capacity | 80 L/min |
| Crane weight | 7,250 kg |
CONFIGURATION
- Two hooks, 25 T + 6.3 T, with 360° continuous rotation.
- Hydraulic balance valve, hydraulic overflow valve, and hydraulic double-way valve.
- Anti-two-block warning device.
- Dual four-bar linkage mechanism.
- Wireless remote control.
- Load moment limiter, emergency stop switch, and hour meter. XCMG SQZ565.8 Knuckle boom crane
