XCMG SQZ865EU
Truck-Mounted Crane
XCMG
SQZ865EU

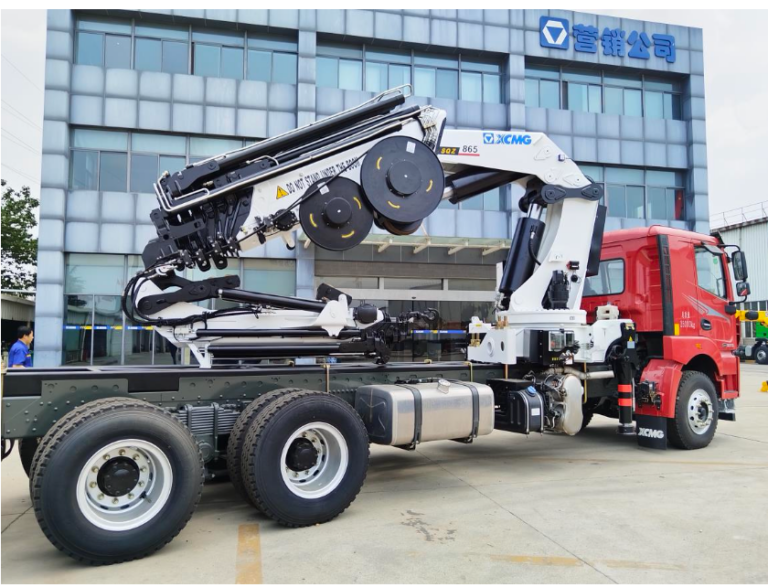

The XCMG SQZ865EU is a heavy-duty truck-mounted crane designed for high-capacity lifting and material handling operations. With a maximum lifting capacity of 25,500 kg, 734 T.M lifting moment, and up to 19.8 m hydraulic outreach, the crane is designed for demanding lifting applications. The crane features a hexagonal boom, 360° continuous slewing, dual chamber outriggers, and remote control operation from both sides.
Self-Weight
9,300 kg
Model
SQZ865EU
Crane Series
Knuckle Boom Crane
Max Lifting Capacity
25,500 kg
About Our machinery
PRODUCT DESCRIPTION
KEY PRODUCT FEATURES
• Heavy-Duty Lifting Performance : Designed for demanding lifting and material handling applications.
• Long-Reach Boom : The multi-section boom provides extended reach and flexible load positioning.
• Flexible Operation : Remote control operation allows the crane to be operated conveniently from different positions around the truck.
• Stable Lifting System: Dual-stage outriggers provide strong support and stability during lifting operations.
• Smooth & Precise Control : Advanced hydraulic controls provide smooth boom movement and accurate load positioning.
• Enhanced Safety :Multiple hydraulic safety devices and hook protection systems support safe lifting operations.
• Efficient Boom Operation : The boom system is designed for fast extension and retraction, helping improve overall working efficiency.
Technical Data
Specifications
Max. Lifting Capacity
25,500 kg
Max. Working Radius
19.8 m
Max. Lifting Height
-
Product Self-Weight
9,300 kg
TECHNICAL SPECIFICATIONS FOR SQZ865EU
| Specification | Value |
|---|---|
| Brand | XCMG |
| Crane model | SQZ865EU |
| Max. lifting capacity | 25,500 kg |
| Max. lifting moment | 734 T.M |
| Boom type | Hexagon, 8 sections |
| Max. hydraulic outreach | 19.8 m |
| Slewing angle | 360° continuous |
| Outriggers type | Dual chamber two stage |
| Outriggers span | 2,340 – 8,300 mm |
| Operation | Remote control, front and both sides |
| Max. pressure of hydraulic system | 33 MPa |
| Recommended pump capacity | 107 L/min |
| Crane weight | 9,300 kg |
