XCMG GKH50TL Skylift
Skylift
XCMG
GKH50TL

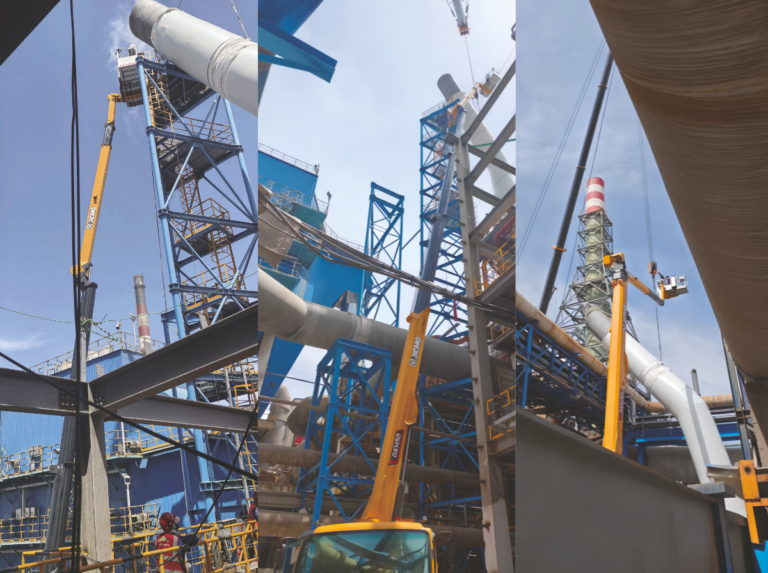

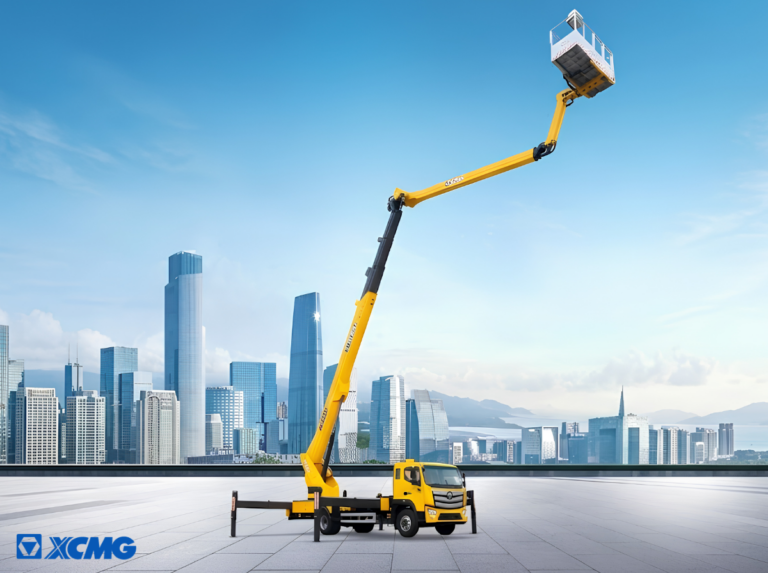

The XCMG GKH50TL is a truck-mounted aerial working platform (skylift) designed for high-reach work at height. With a maximum working height of 50 m, a maximum working radius of 28 m, and a platform rated load of up to 500 kg, the GKH50TL delivers strong reach performance with flexible load positioning. Its hybrid boom — a four-section main boom, two-section upper boom and fly jib — together with a telescopic aluminium platform, 360° continuous turntable slewing and H-type double-stage outriggers, makes it suitable for demanding petrochemical, steel structure, industrial maintenance and plant construction applications.
Model
GKH50TL
Category
Aerial Working Platform
Max Lifting Capacity
50 m
About Our machinery
PRODUCT DESCRIPTION
KEY PRODUCT FEATURES
• 50 m Working Height & 28 m Working Radius – Provides extensive vertical and horizontal reach for tall structures and demanding elevated work.

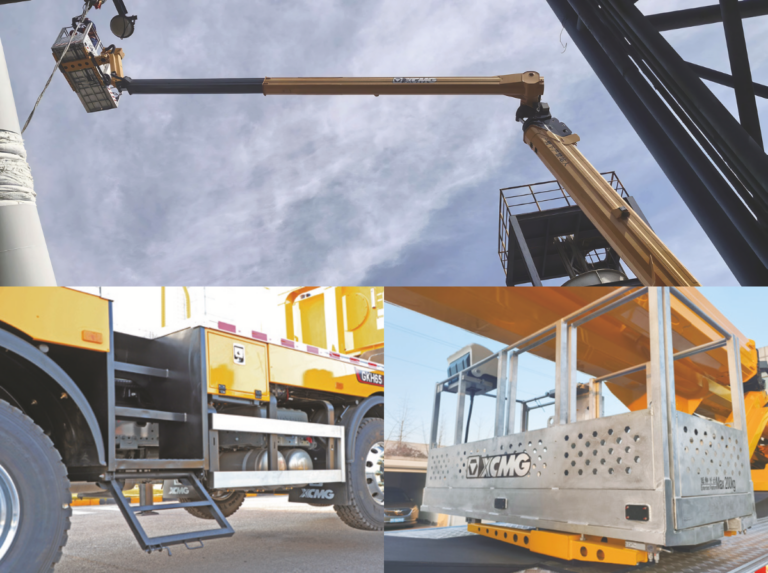

• Hybrid Boom Configuration – Combines a four-section main boom, two-section upper boom and fly jib for flexible access around obstacles.
• Telescopic Aluminium Work Platform – Extends from 2,250 mm to 3,250 mm to accommodate different working space requirements.
• 360° Slewing & ±90° Platform Rotation – Enables flexible and precise positioning around the machine.
• Three-Stage Load Capacity – Supports 500 kg, 260 kg or 120 kg, with automatic jib range limitation based on the actual load.
• H-Type Double-Stage Outriggers – Individually adjustable front and rear outriggers with automatic working envelope adjustment.
• Multi-Functional Control System – Features platform, ground-level and remote controls, with a 2-axis joystick, HD display and emergency stop.
• Comprehensive Safety Systems – Includes an electric emergency pump, chassis interlock, outrigger soft-ground protection and emergency stop.
Technical Data
Specifications
Max. Working Height
50 m
Max. Working Radius
28 m (120 kg) / 25.5 m (260 kg) / 23 m (500 kg)
Max. Horizontal Outreach
28 m at 120 kg / 25.5 m at 260 kg / 23 m at 500 kg
Platform Capacity
500 / 260 / 120 kg (three-stage adjustable)
TECHNICAL SPECIFICATIONS FOR GKH50TL Skylift
| Specification | Value |
|---|---|
| Brand | XCMG |
| Model | GKH50TL |
| Product category | Aerial working platform |
| Chassis model | 福田 FOTON BJ1226VMPHN-RF |
| Engine | Cummins ISDe 270, Euro V emission standard, rated power 199 kW |
| Cab | Semi-sleeper cab, rated seating capacity 2 persons, equipped with air conditioner |
| Max. working height | 50 m |
| Max. platform height | Not specified in the PDF |
| Max. working radius | 28 m (120 kg) / 25.5 m (260 kg) / 23 m (500 kg) |
| Working radius at max. working height | 7 m |
| Working height at max. working radius | 6.5 m |
| Max. working depth | 10 m |
| Platform rated load | 500 / 260 / 120 kg (three-stage adjustable) |
| Boom type | Hybrid boom: 4-section main boom + 2-section upper boom + fly jib |
| Platform dimensions | Retracted 2,250 × 900/780 (main/auxiliary) × 1,100 mm; extended 3,250 × 900/780 (main/auxiliary) × 1,100 mm |
| Platform rotation | ±90° |
| Turntable rotation | 360° continuous slewing |
| Outrigger | Front & rear H-type double-stage outriggers, individually adjustable |
| Outrigger span (transverse) | 8,100 mm |
| Outrigger span (longitudinal) | 6,490 mm |
| Overall dimensions | 10,300 × 2,550 × 3,900 mm |
| Wheelbase | 5,150 mm |
| Front overhang | 1,270 mm |
| Rear overhang | 3,130 mm |
| Front extension | 750 mm |
| Rear extension | Not specified in the PDF |
| Gross weight | 18,000 kg |
| Crew (including driver) | 2 persons |
| Max. travel speed | 100 km/h |
| Approach angle | 20° |
| Departure angle | 9° |
| Power takeoff system | Pneumatic control, gear pump directly connected to the PTO |
| Control system | Electro-hydraulic proportional control system, achieving stepless speed regulation |
| Leveling system | Electro-hydraulic automatic leveling system |
| Operation system | Displays at platform, lower controls & remote controller; remote controls upper & lower functions |
| Bedplate | Aluminium alloy non-slip walkway |
SAFETY DEVICES
• Electric emergency pump
• Upper/lower chassis interlock
• Outrigger soft-ground (soft-leg) protection
• Emergency stop
• Radiator
• Emergency stop switch on the platform control box
• Safety protection for turntable slewing motion
• Anti-slip coating treatment
