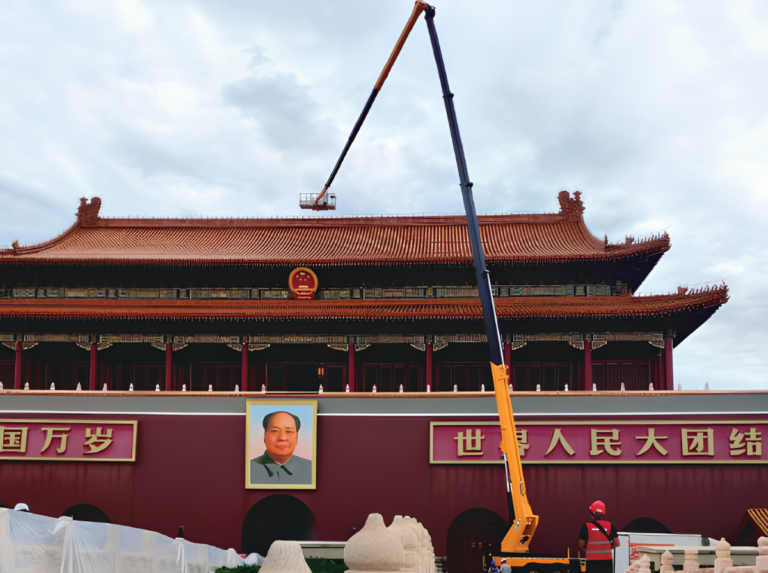

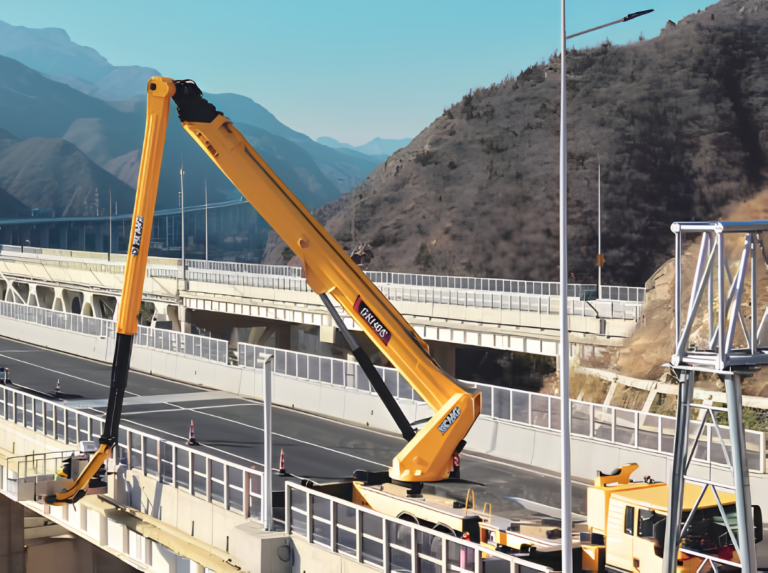

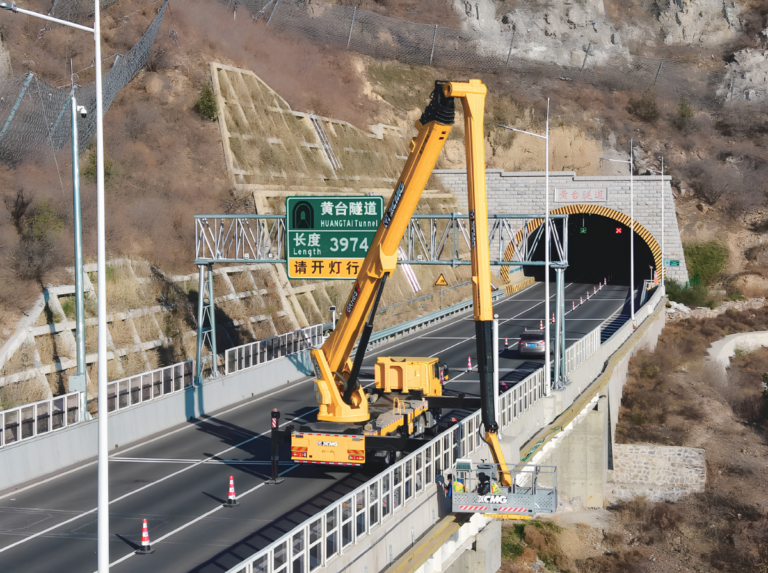

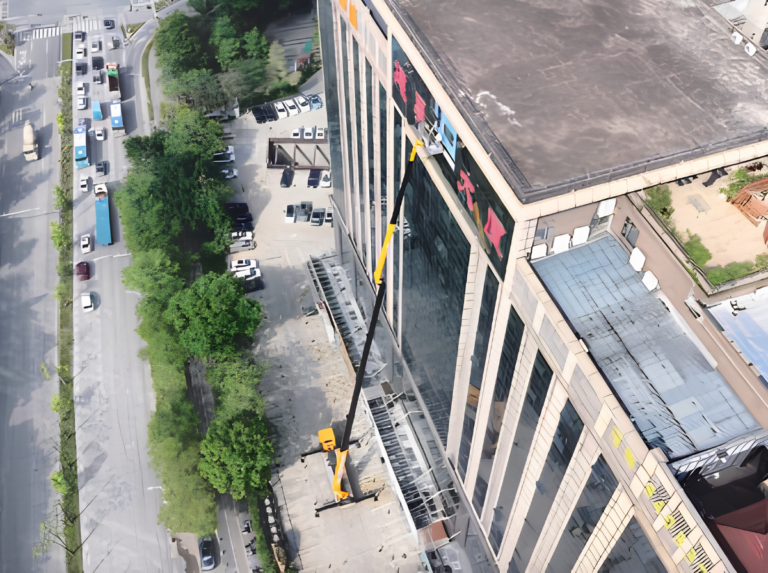

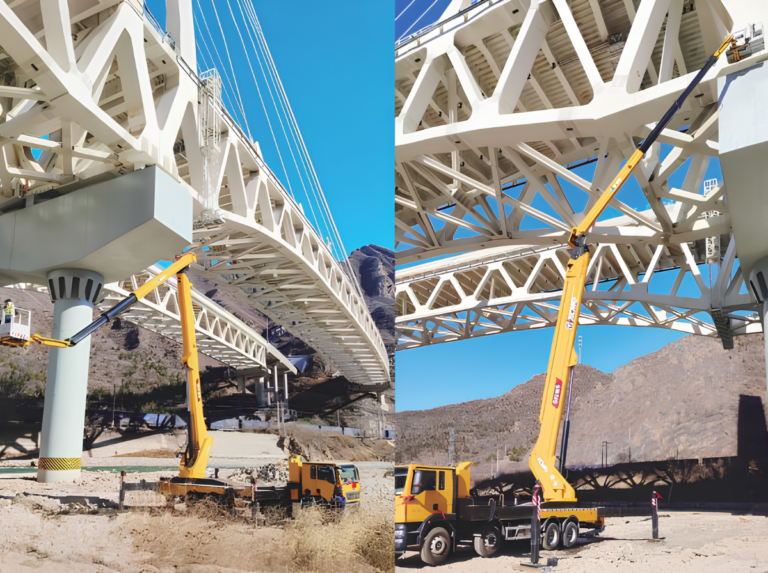

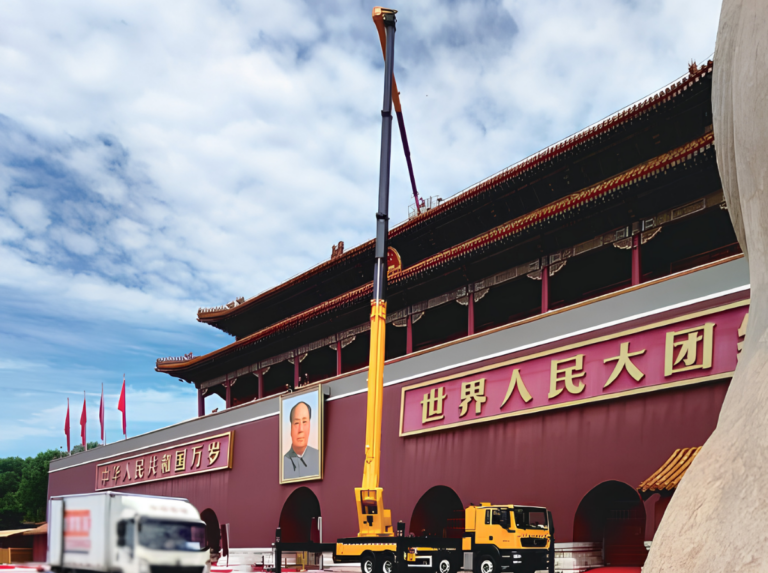

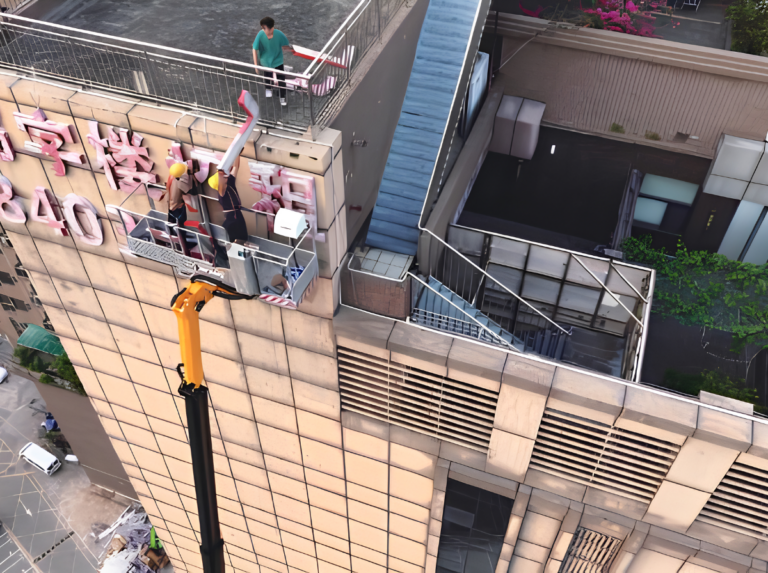

The XCMG GKH65TL is a heavy-duty truck-mounted aerial working platform (skylift) designed for high-reach work at height. With a maximum working height of 65 m, a maximum working radius of 40 m, and a platform rated load of up to 500 kg, it delivers strong reach performance with flexible load positioning. Its hybrid boom — a five-section main boom, three-section upper boom and fly jib — together with a telescopic aluminium platform, 360° continuous turntable slewing and H-type double-stage outriggers, makes it suitable for landmark building maintenance, bridge and steel structure works, tunnel portal works, industrial plant construction and infrastructure projects.
Model
GKH65TL Skylift
Category
Aerial Working Platform
Max Lifting Capacity
65 m
About Our machinery
PRODUCT DESCRIPTION
KEY PRODUCT FEATURES
• 65 m Working Height & 40 m Working Radius – Provides exceptional vertical and horizontal reach for very tall structures and demanding elevated work.
• Hybrid Boom Configuration – Combines a five-section main boom, three-section upper boom and fly jib for flexible access around obstacles.
• Double-Cylinder Boom Extension – Features jib-priority extension for stable operation, with on-screen indicators for intuitive control.
• Telescopic Aluminium Work Platform – Extends from 2,250 mm to 3,250 mm to suit different working space requirements.
• 360° Slewing & ±90° Platform Rotation – Enables flexible and precise positioning around the machine.
• Three-Stage Load Capacity – Supports 500 kg, 260 kg or 120 kg, with automatic working envelope control based on the actual load.
• H-Type Double-Stage Outriggers – Independently adjustable front and rear outriggers with automatic working envelope adjustment.
• Multi-Functional Control System – Features platform, ground-level and remote controls, with a 2-axis joystick, HD display and emergency stop.
• Protected Hydraulic Lines & Cables – Uses internal routing, cable drag chains and protective hoses for enhanced durability and easier maintenance.
• Comprehensive Safety Systems – Includes a radiator, electric emergency pump, chassis interlock, outrigger soft-ground protection and emergency stop.
Technical Data
Specifications
Max. Working Height
65 m
Max. Working Radius
40 m
Max. Horizontal Outreach
40 m
Platform Capacity
500 / 260 / 120 kg (three-stage adjustable)
TECHNICAL SPECIFICATIONS FOR GKH65TL Skylift
| Specification | Value |
|---|---|
| Brand | XCMG |
| Model | GKH65TL |
| Product category | Aerial working platform |
| Chassis model | SX5318JGKDT356CR SHACMAN 8×4 chassis, right-hand drive |
| Engine | Cummins M10E5 385 engine, rated power 283 kW, Euro V emission standard |
| Cab | Low-profile, semi-sleeper cab, 3-person capacity, single cooling air conditioner |
| Max. working height | 65 m |
| Max. platform height | Not specified |
| Max. working radius | 40 m |
| Working radius at max. working height | 9.6 m |
| Working height at max. working radius | 6.5 m |
| Platform rated load | 500 / 260 / 120 kg (three-stage adjustable) |
| Boom type | Hybrid boom: 5-section main boom + 3-section upper boom + fly jib |
| Boom extension | Main boom double-cylinder extension with priority extension of the jib |
| Platform type | Telescopic aluminium alloy work platform |
| Platform dimensions | Retracted 2,250 × 900/780 (main/auxiliary) × 1,100 mm; extended 3,250 × 900/780 (main/auxiliary) × 1,100 mm |
| Platform rotation | ±90° |
| Turntable rotation | 360° continuous slewing |
| Rotation device | External meshing planetary slewing reducer |
| Outrigger | Front & rear H-type double-stage outriggers, individually adjustable |
| Outrigger span (transverse) | 8,260 mm |
| Outrigger span (longitudinal) | 8,440 mm |
| Overall dimensions | 11,995 × 2,550 × 4,100 mm |
| Wheelbase | 2,100 + 3,575 + 1,400 mm |
| Front overhang | 1,525 mm |
| Rear overhang | 2,890 mm |
| Front extension | 505 mm |
| Rear extension | 0 mm |
| Gross weight | 34,000 kg |
| Crew (including driver) | 3 persons |
| Max. travel speed | 90 km/h |
| Min. ground clearance | 310 mm |
| Approach angle | 15° |
| Departure angle | 10° |
| Power takeoff system | Electrically controlled pneumatic PTO |
| Control system | Electro-hydraulic proportional control system, achieving stepless speed regulation |
| Leveling system | Electro-hydraulic leveling system |
| Operation system | Displays at platform, lower controls & remote controller; remote controls upper & lower functions |
| Bedplate | Aluminium alloy non-slip walkway |
SAFETY DEVICES
• Radiator
• Electric emergency pump
• Upper/lower chassis interlock
• Outrigger soft-ground (soft-leg) protection
• Emergency stop
• Automatic jib range limitation according to actual load
• Automatic working envelope adjustment based on outrigger extension distance
• Safety protection for turntable slewing motion
• Emergency stop switch on the platform control box
• Anti-slip coating treatment
