XCMG GKS45TL Skylift
Skylift
XCMG
GKS45TL Skylift

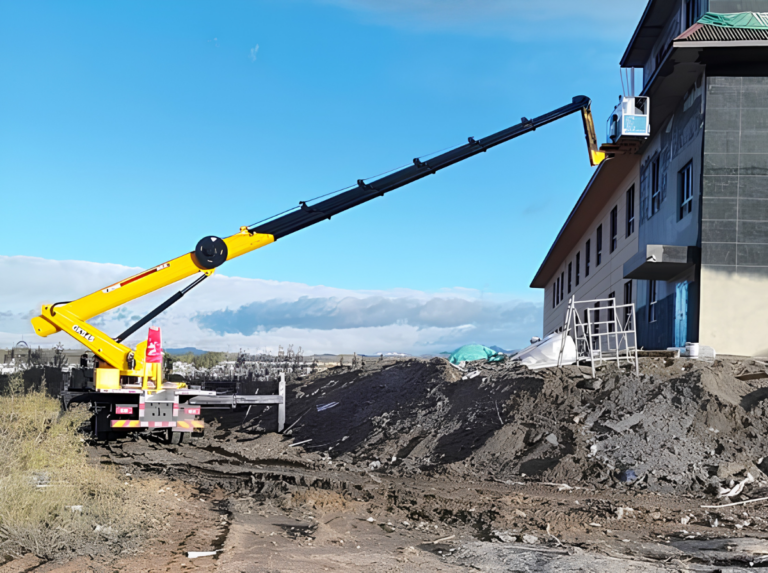

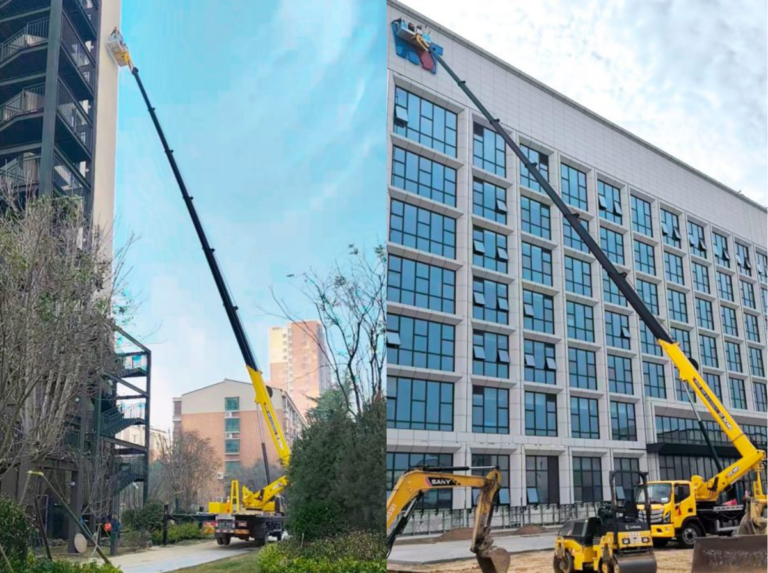

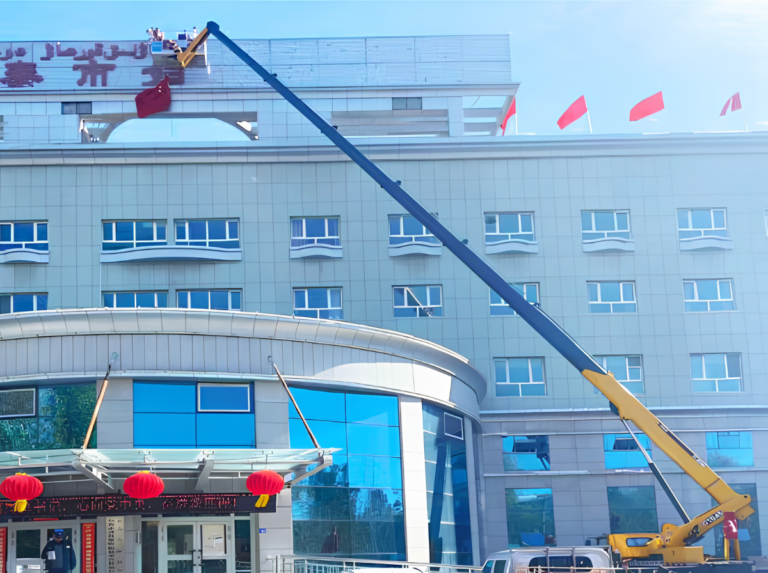

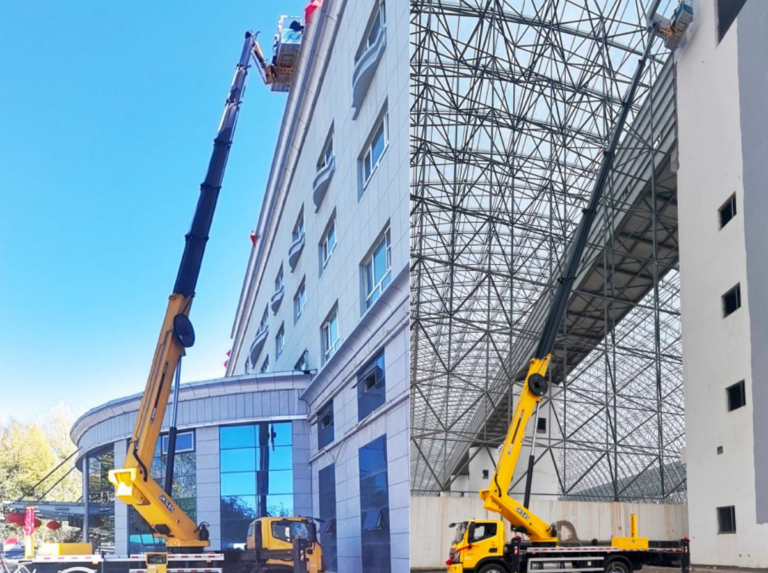

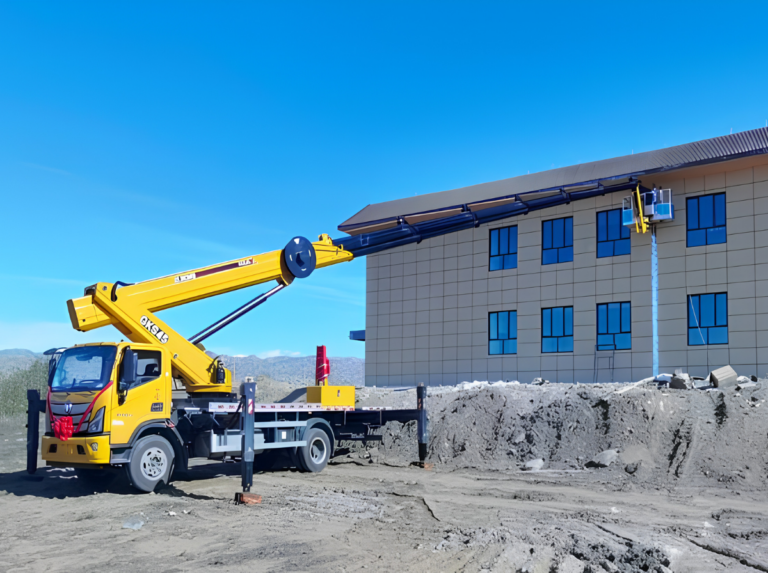

The XCMG GKS45TL is a truck-mounted aerial working platform (skylift) designed for elevated work on buildings and industrial sites. With a maximum working height of 45 m, a maximum working radius of 27 m, and a platform rated load of up to 400 kg, it delivers strong reach with flexible load positioning. Its six-section telescopic boom with independent fly jib, foldable aluminium platform, ±360° continuous turntable slewing and front X-type / rear H-type outriggers make it suitable for building facade maintenance, commercial and residential building works, and industrial plant construction.
Model
GKS45TL Skylift
Category
Aerial Working Platform
Max Lifting Capacity
45 m
About Our machinery
PRODUCT DESCRIPTION
KEY PRODUCT FEATURES
• 45 m Working Height & 27 m Working Radius – Provides extensive vertical and horizontal reach for tall buildings and elevated work.
• Six-Section Telescopic Boom & Fly Jib – Combines a six-section telescopic boom with an independent fly jib for flexible access around obstacles.
• Foldable Aluminium Work Platform – Features a side-opening design for convenient loading and unloading of tools and materials.
• 360° Slewing & ±90° Platform Rotation – Enables flexible and precise positioning around the vehicle.
• Dual-Stage X-Type & H-Type Outriggers – Independently adjustable front and rear outriggers enhance stability during slewing.
• Three-Stage Load Capacity – Supports 400 kg, 260 kg or 120 kg, with real-time load monitoring and automatic working range limitation.
• Automatic Outrigger & Outreach Monitoring – Adjusts the working outreach according to outrigger extension, boom position and load.
• Multi-Position Controls & Radio Remote – Supports operation from the platform, turret and ground-level controls, with a standard radio remote.
• Real-Time Vehicle Level Monitoring – Monitors vehicle tilt to help maintain stable operation.
• Comprehensive Safety Systems – Includes outrigger soft-ground protection, upper/lower chassis interlock, emergency electric pump and emergency stop.
Technical Data
Specifications
Max. Working Height
45 m
Max. Working Radius
27 m
Max. Horizontal Outreach
27 m
Platform Capacity
400 / 260 / 120 kg (three-stage adjustable)
TECHNICAL SPECIFICATIONS FOR GKS45TL Skylift
| Specification | Value |
|---|---|
| Brand | XCMG |
| Model | GKS45TL |
| Product category | Aerial working platform |
| Chassis model | 福田 FOTON BJ1226VMPHN-RF |
| Engine | Cummins ISDe 270 Euro5 engine, rated power 199 kW, Euro V emission standard |
| Cab | Semi-sleeper cab, rated seating capacity 2 persons, equipped with air conditioner |
| Drive configuration | Right-hand drive |
| Max. working height | 45 m |
| Max. platform height | Not specified |
| Max. working radius | 27 m |
| Working radius at max. working height | 6.7 m |
| Working height at max. working radius | 3.7 m |
| Platform rated load | 400 / 260 / 120 kg (three-stage adjustable) |
| Boom type | Base boom + six-section telescopic boom + independent fly boom |
| Boom structure | Polygonal boom fabricated from formed high-strength steel plates via robotic welding and electrophoretic coating |
| Platform type | Foldable aluminium alloy work platform, one side openable for loading and unloading |
| Platform dimensions | 2,108 × 750 × 1,100 mm (stated as 2,100 × 750 × 1,100 mm in the feature text — see notes) |
| Platform rotation | ±90° |
| Turntable rotation | ±360° continuous |
| Rotation device | External meshing planetary slewing reducer |
| Outrigger | Dual-stage, X-type in the front and H-type in the rear, each independently adjustable |
| Outrigger span (transverse, front/rear) | 7,085 / 6,900 mm |
| Outrigger span (longitudinal, left/right) | 5,870 / 5,620 mm |
| Overall dimensions | 9,489 × 2,535 × 3,758 mm |
| Wheelbase | 5,150 mm |
| Front overhang | 1,270 mm |
| Rear overhang | 2,634 mm |
| Front extension | 0 mm |
| Rear extension | 435 mm |
| Gross weight | 15,500 kg |
| Crew (including driver) | 2 persons |
| Max. travel speed | 100 km/h |
| Min. ground clearance | 240 mm |
| Approach angle | 20° |
| Departure angle | 10° |
| Power takeoff system | Pneumatic control, gear pump directly connected to the PTO |
| Control system | Load-sensing electro-hydraulic proportional control, stepless speed regulation |
| Leveling system | Electro-hydraulic leveling system |
| Coaming plate and bedplate | Aluminium alloy anti-slip bedplate, aluminium alloy railings |
| Operation | Hydraulic handles at the column, radio remote control as standard, lower vehicle hydraulic handles, emergency electric hydraulic pump |
| Load limiting | Column-mounted oil pressure monitoring sensor for real-time working range limitation based on platform load |
SAFETY CONFIGURATIONS
• Soft Outrigger Protection — real-time outrigger force detection, cutting off dangerous movements in case of abnormality
• Upper/Lower Interlock — prevents misoperation between upper and lower systems
• Emergency Electric Pump — safely lowers the platform in case of main system failure
• Emergency Stop — installed at the platform, turntable and lower position for instant stop
• Vehicle Level Monitor — real-time tilt monitoring for stable operation
• Outrigger Cable Sensor — real-time outrigger position monitoring with auto-adapted working outreach
• Automatic working range limitation via column oil pressure sensor
• Graduated outrigger extension with automatic outreach limitation
• External meshing planetary slewing reducer with adjustable meshing clearance
